How to Check Robots.txt and Avoid Common SEO Mistakes

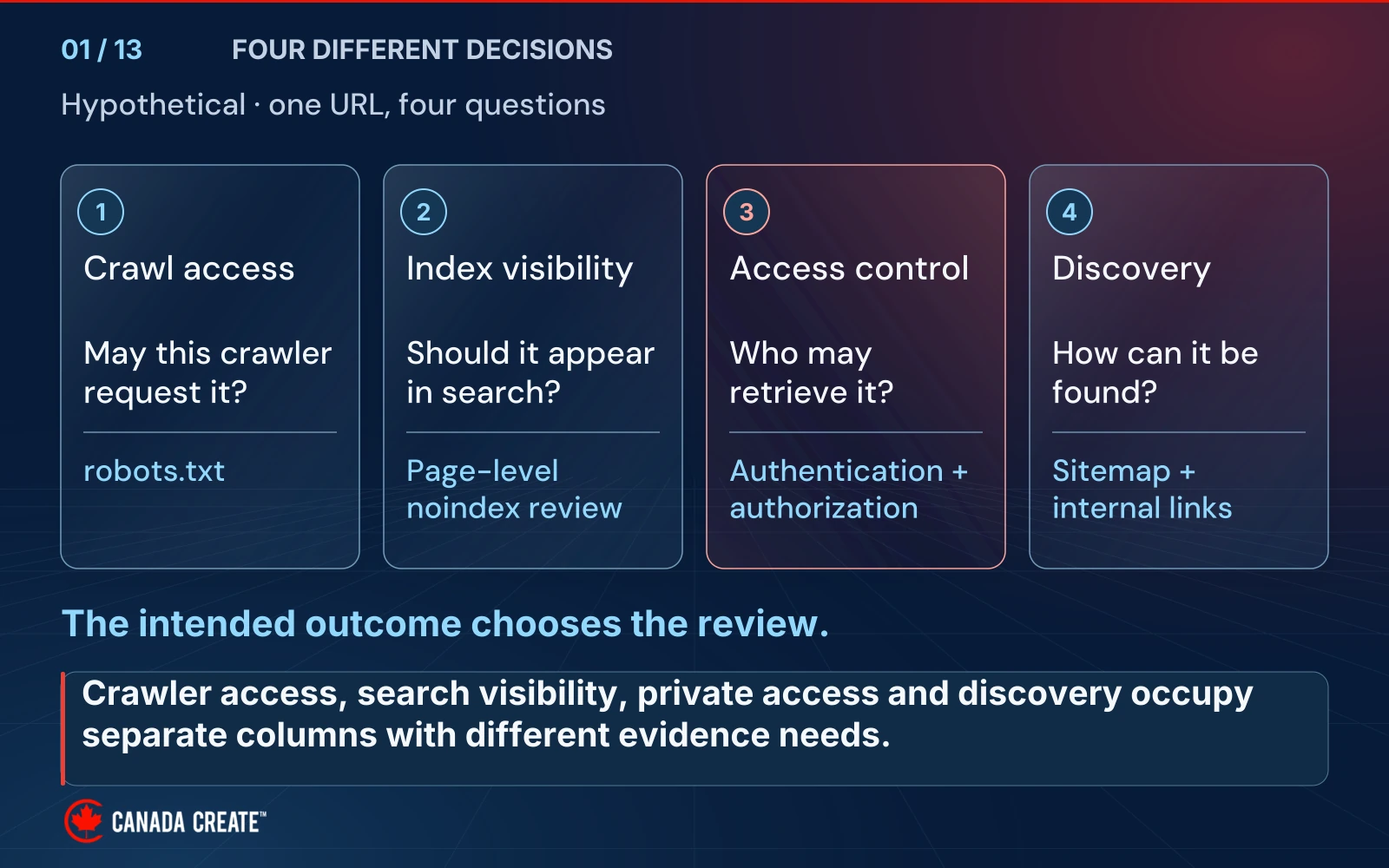

The hypothetical URL is considered through four separate questions. Crawl access asks whether a participating crawler may request the URL and points to robots.txt. Index visibility asks whether the page should appear in search and points to a page-level noindex review. Access control asks who may retrieve the information and points to authentication and authorization. Discovery asks how the URL can be found and points to sitemaps and internal links. The desktop separates the questions into columns; mobile preserves the same four categories in a vertical sequence. The diagram does not imply these mechanisms guarantee indexing, removal or security.

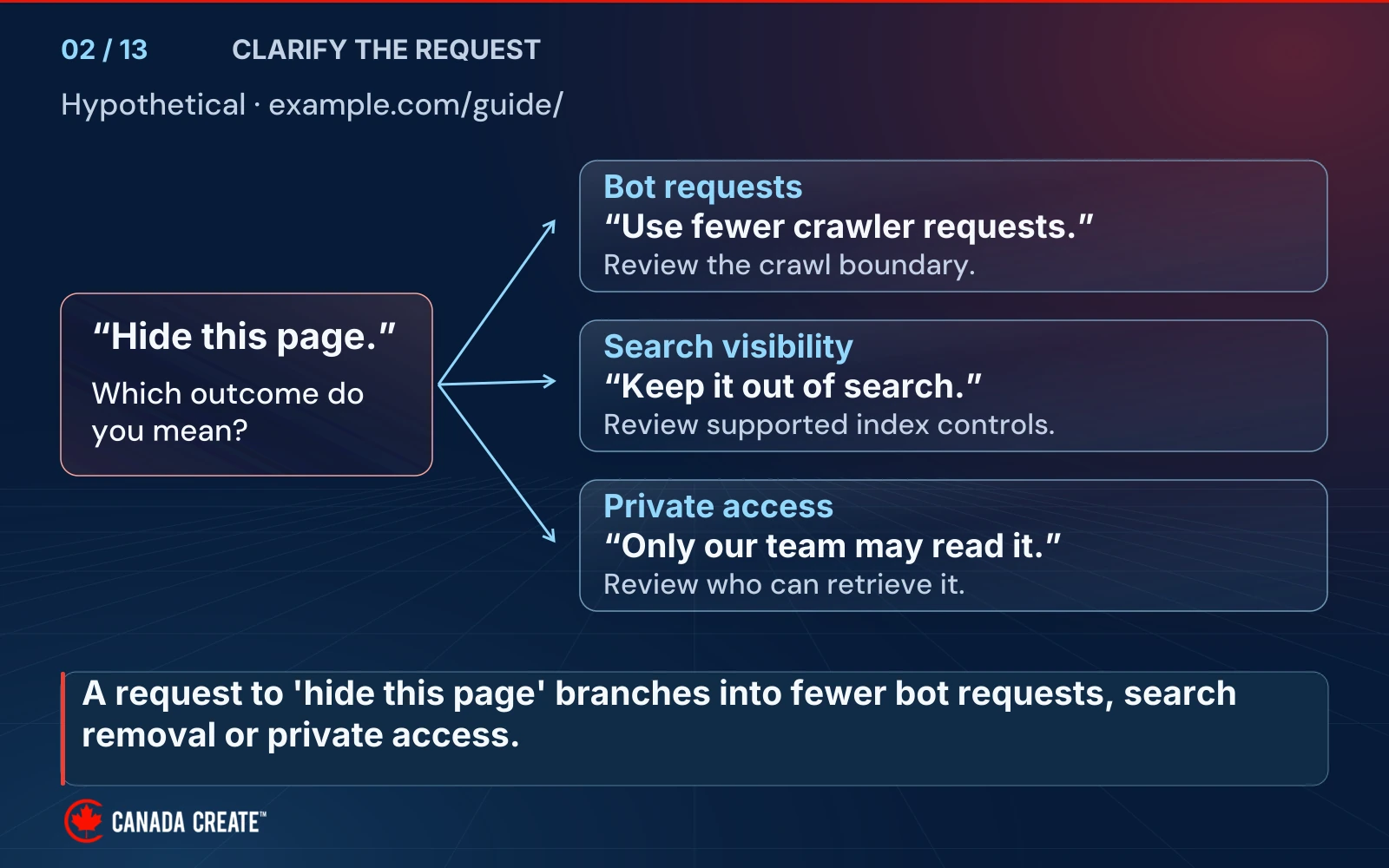

The fictional request concerns example.com/guide/ and begins with the ambiguous phrase “Hide this page.” Three arrows separate the possible meanings. Bot requests means using fewer crawler requests, so the next discussion reviews the crawl boundary. Search visibility means keeping the page out of search, so the next discussion reviews supported index controls. Private access means that only the team may read the page, so the next discussion reviews who can retrieve it. The mobile layout preserves the three numbered alternatives. These are hypothetical goals and review paths, not completed changes or guaranteed outcomes.

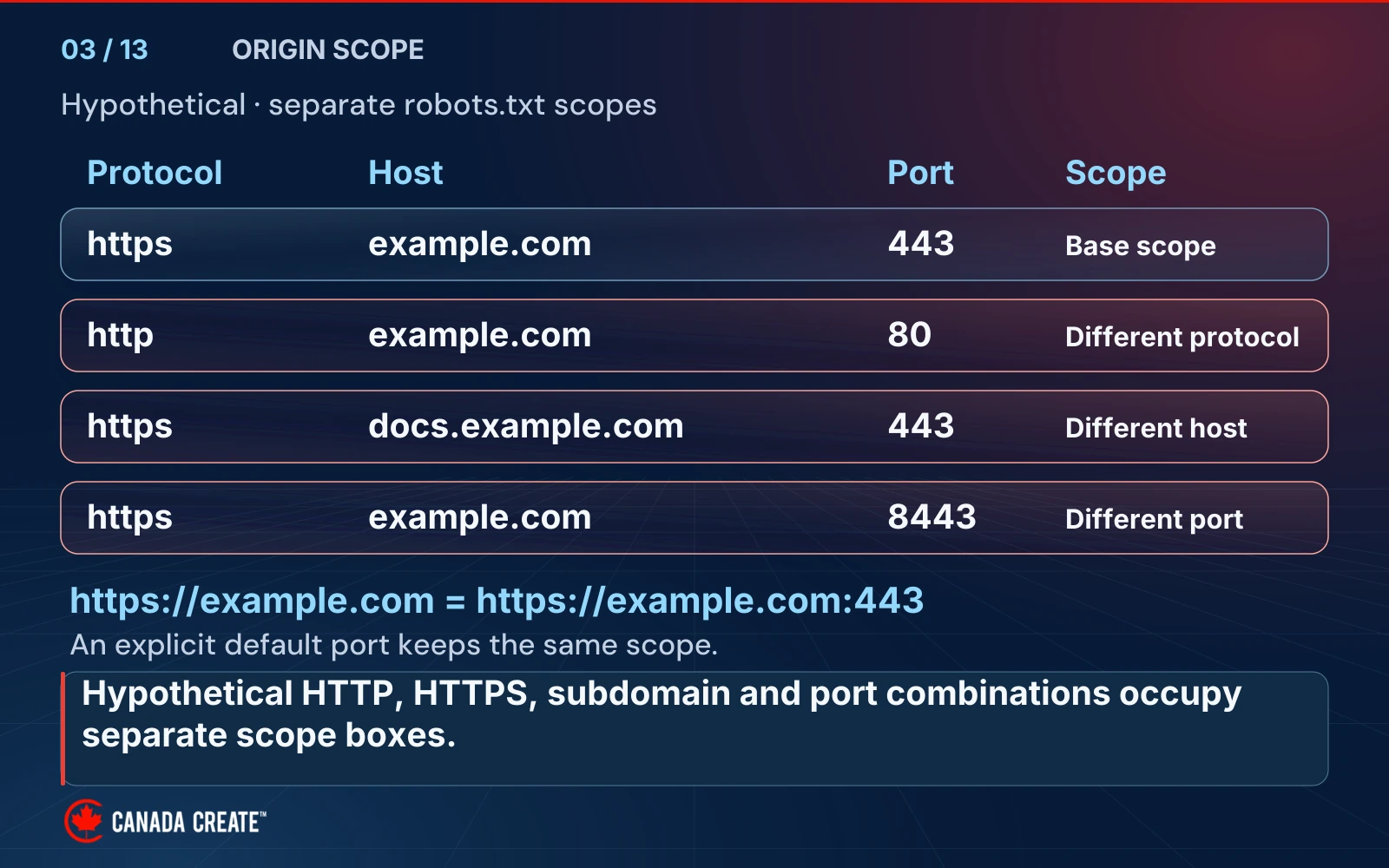

Four hypothetical rows illustrate distinct robots.txt origins. The base scope is HTTPS, example.com, port 443. A second row changes the protocol to HTTP with port 80. A third uses the different host docs.example.com over HTTPS and port 443. A fourth keeps HTTPS and example.com but uses nondefault port 8443. A separate equality explicitly states that https://example.com and https://example.com:443 have the same scope because 443 is the default HTTPS port. The mobile version labels each row by its change.

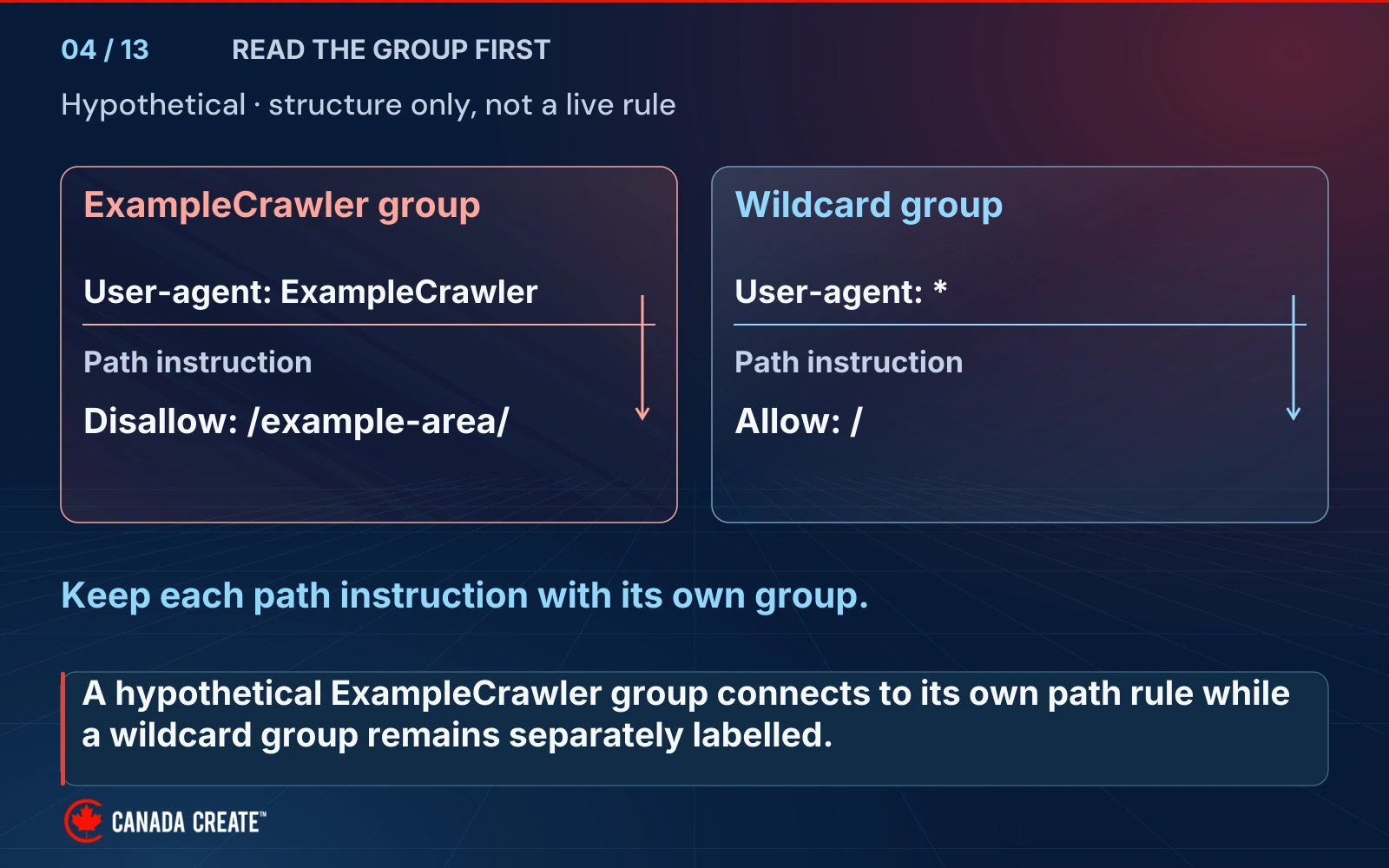

A red-accented ExampleCrawler group contains “User-agent: ExampleCrawler” followed by its own path instruction, “Disallow: /example-area/.” A separate blue-accented wildcard group contains “User-agent: *” followed by “Allow: /.” Dividers and the desktop arrows bind each instruction to the group directly above it. The mobile version stacks the two separate groups without merging them. ExampleCrawler is invented, and the example is explicitly marked hypothetical. The figure teaches grouping rather than recommending these paths or claiming that the wildcard instruction should be combined with a more specific applicable group.

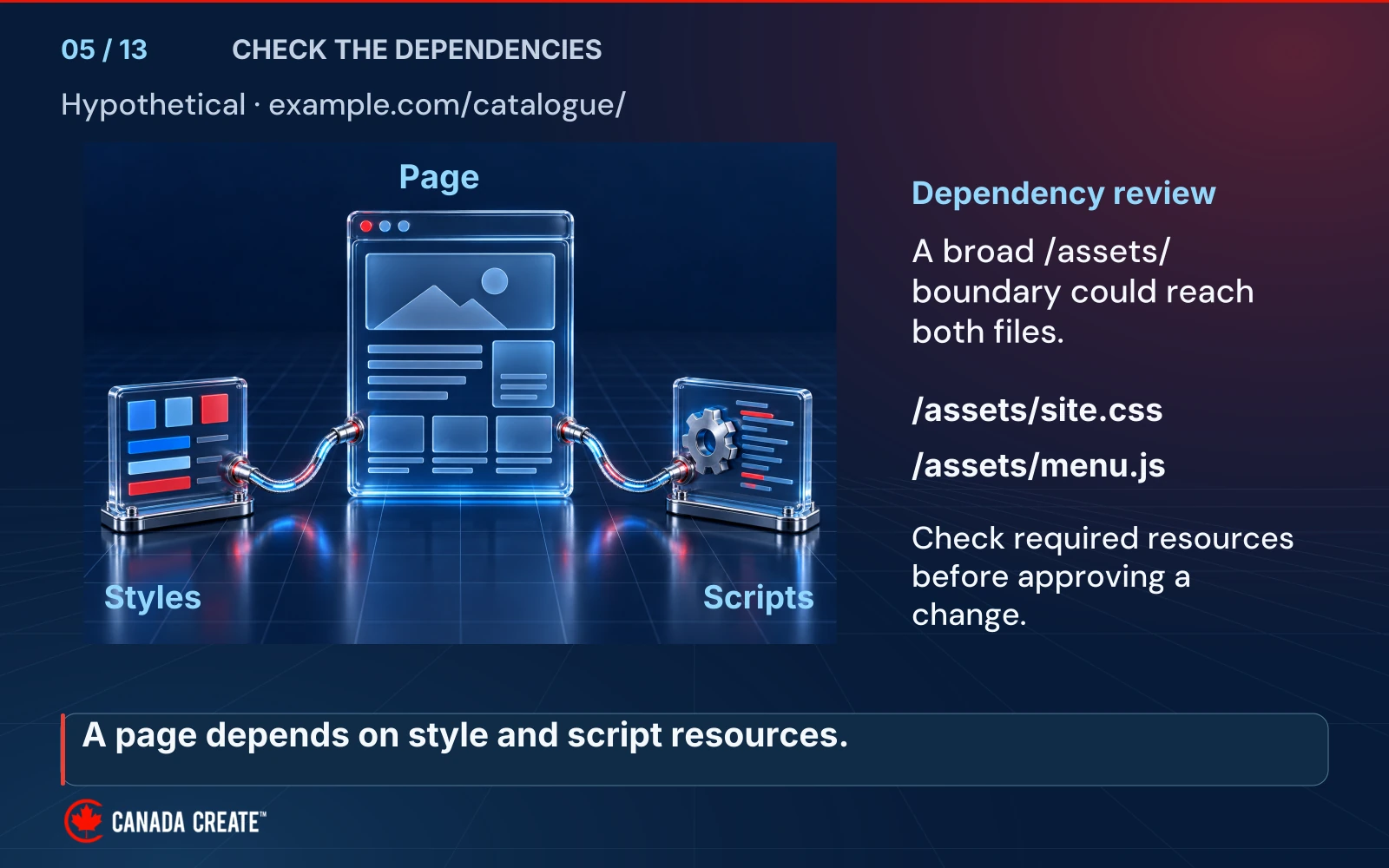

A three-dimensional diagram shows one central glass page connected by two separate chrome cables to a style plate and a script plate. Labels identify Page, Styles and Scripts. The fictional example is example.com/catalogue/, with resources /assets/site.css and /assets/menu.js. The adjacent dependency review asks whether a broad /assets/ crawl boundary could affect both files. The cable connections represent required resources, not requests observed on a real site. The lesson is to check resource dependencies before an approved change; it does not claim that a particular live rule exists or prescribe blocking either file.

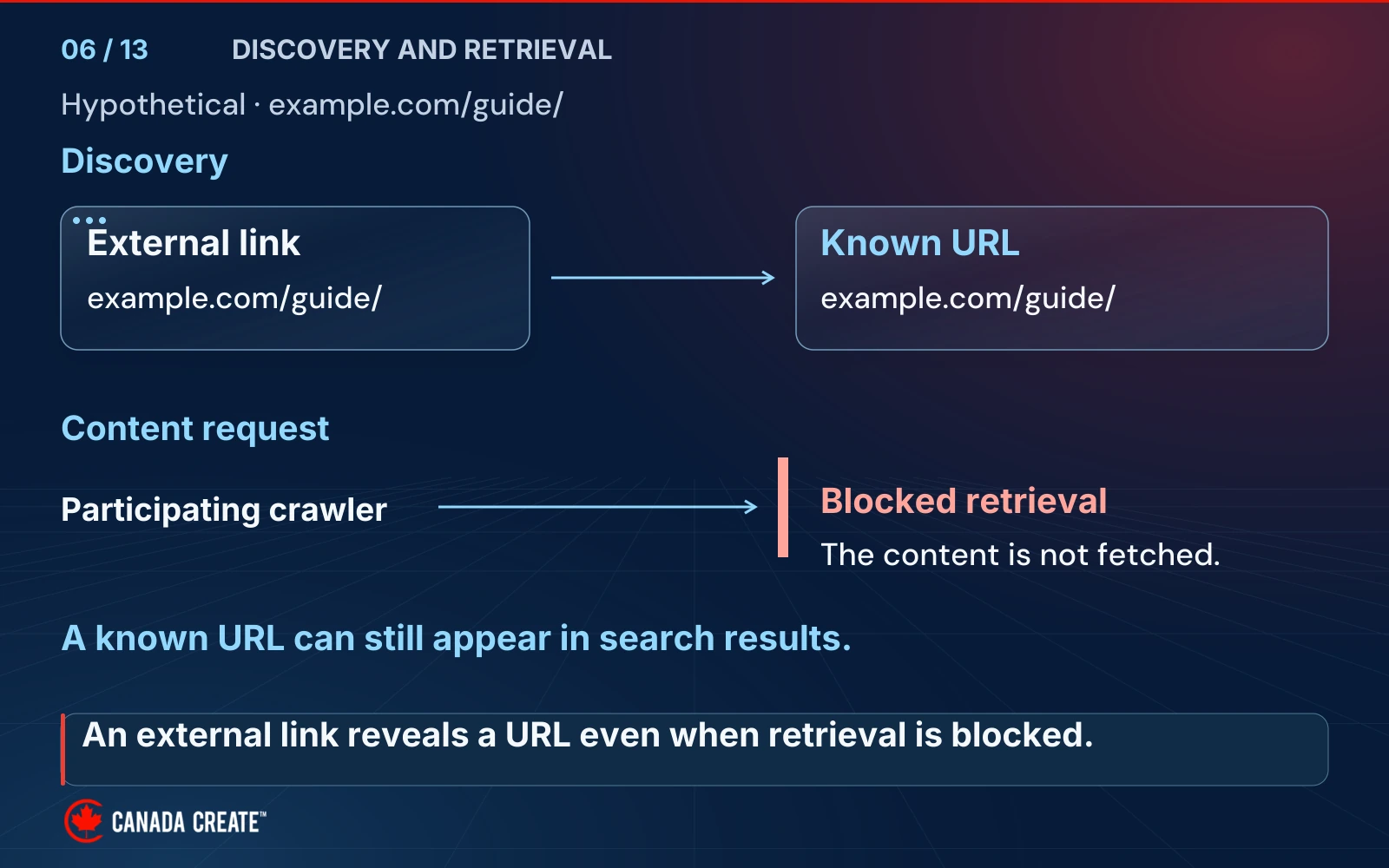

The fictional example uses example.com/guide/. In the discovery lane, a blue arrow runs from an External link to the same Known URL. In the separate content-request lane, the participating crawler’s arrow stops at a red vertical barrier labelled Blocked retrieval; the content is not fetched. The mobile layout places the known-URL box below the external link and retains the separate request barrier. The note explains that a known URL can still appear in search results. The blocked content-request lane is not presented as a reliable index-removal mechanism or an access-control barrier.

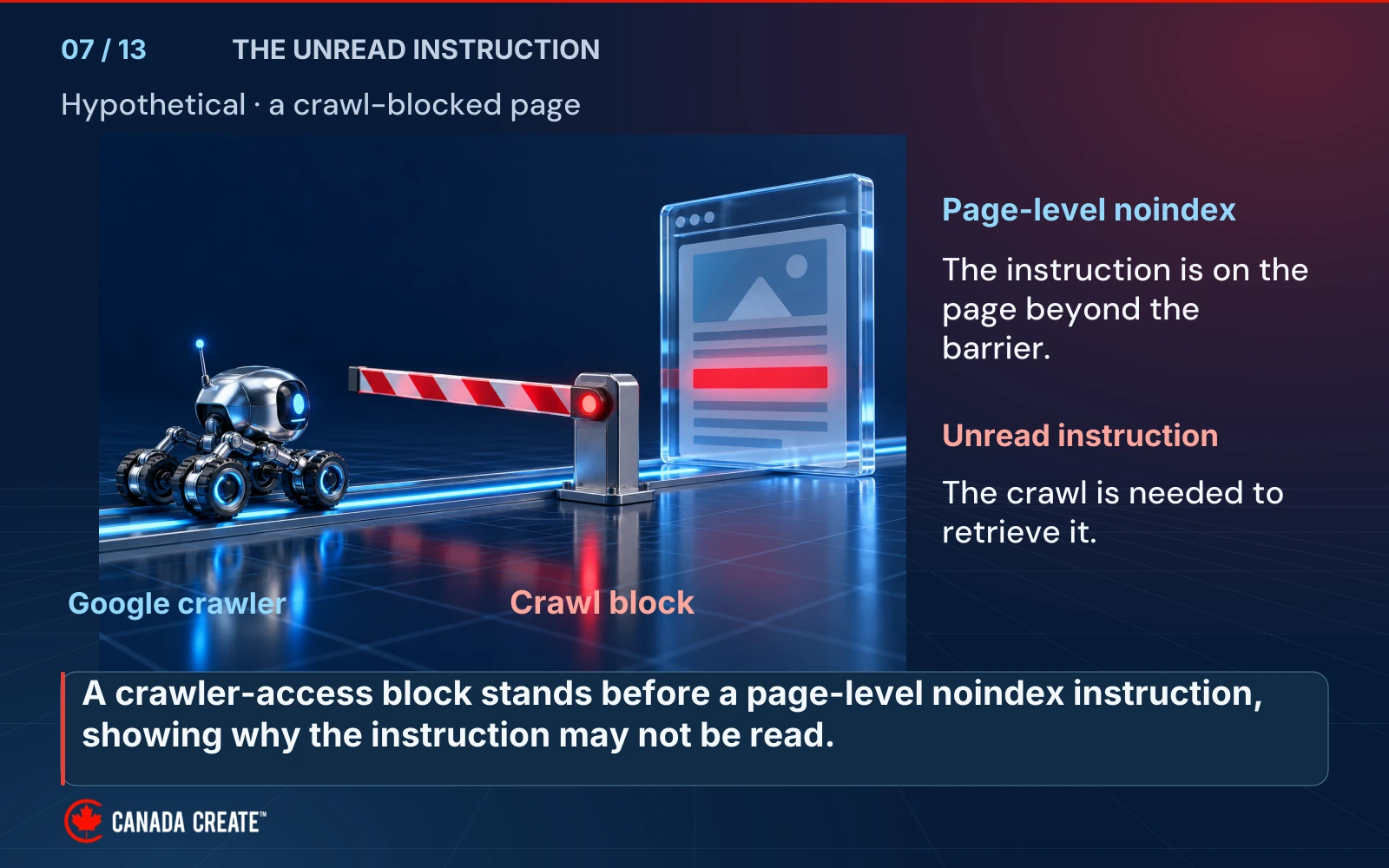

A chrome-and-glass diagram places a Google crawler on the left, a lowered red crawl barrier in the middle and a glass page on the right. A red instruction strip is visibly located on the page beyond the barrier. Labels identify Crawl block, Page-level noindex and Unread instruction. The explanatory text states that the crawl is needed to reach the instruction on the page. This is a hypothetical model, not a real Google interface or actual robots.txt configuration. It illustrates why a crawl block can prevent Google from extracting a page-level noindex rule, without suggesting that noindex belongs in robots.txt.

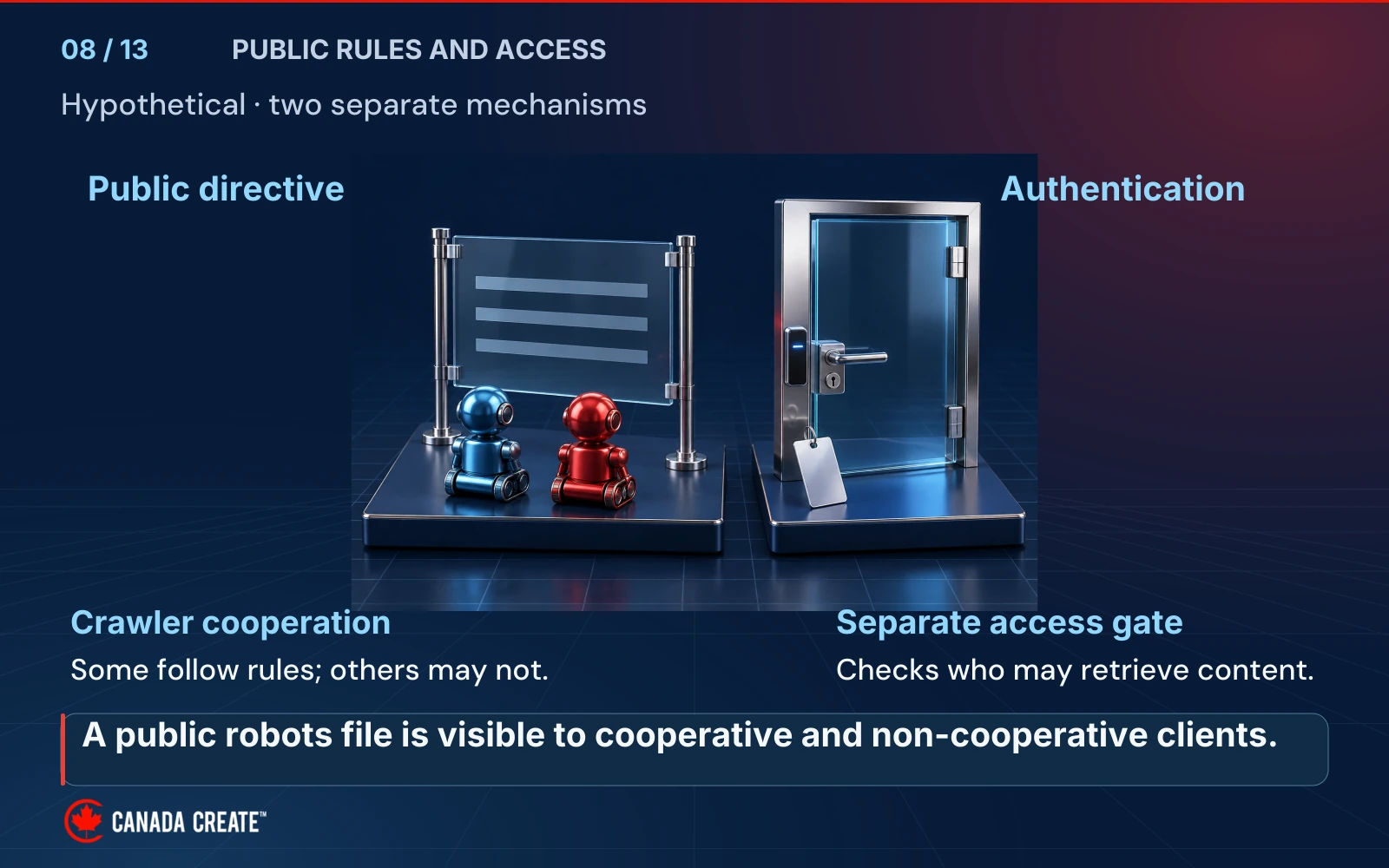

Two physical stations are separated on a navy base. At the first, a blue client and a red client both face an openly readable noticeboard labelled Public directive. Crawler cooperation explains that some clients follow the rules while others may not. At the second station, a separate glass door with an access badge and reader is labelled Authentication and Separate access gate. The layout intentionally contains no path from the noticeboard that turns it into a lock. This hypothetical teaching model distinguishes public instructions from checks on who may retrieve content; it does not certify a live site’s security or depict a deployed authentication system.

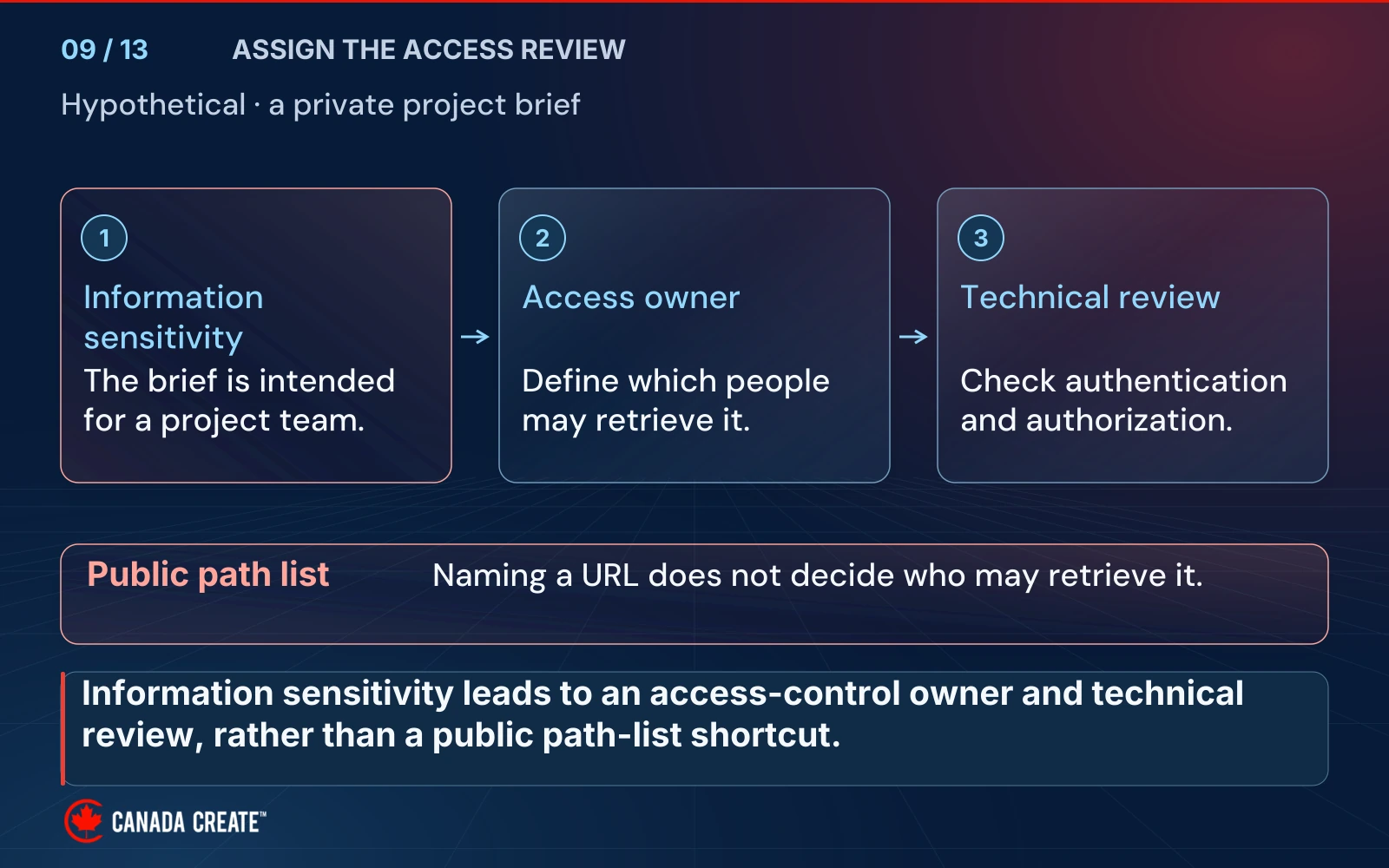

The hypothetical information is a private project brief intended for a project team. Three numbered stages proceed from Information sensitivity to Access owner to Technical review. The owner defines which people may retrieve the brief. Technical review checks authentication and authorization. A separate red-accented Public path list note states that naming a URL does not decide who may retrieve it. The mobile diagram uses downward arrows for the same sequence. No real confidential document or user information appears, and the figure does not claim a security review has already passed.

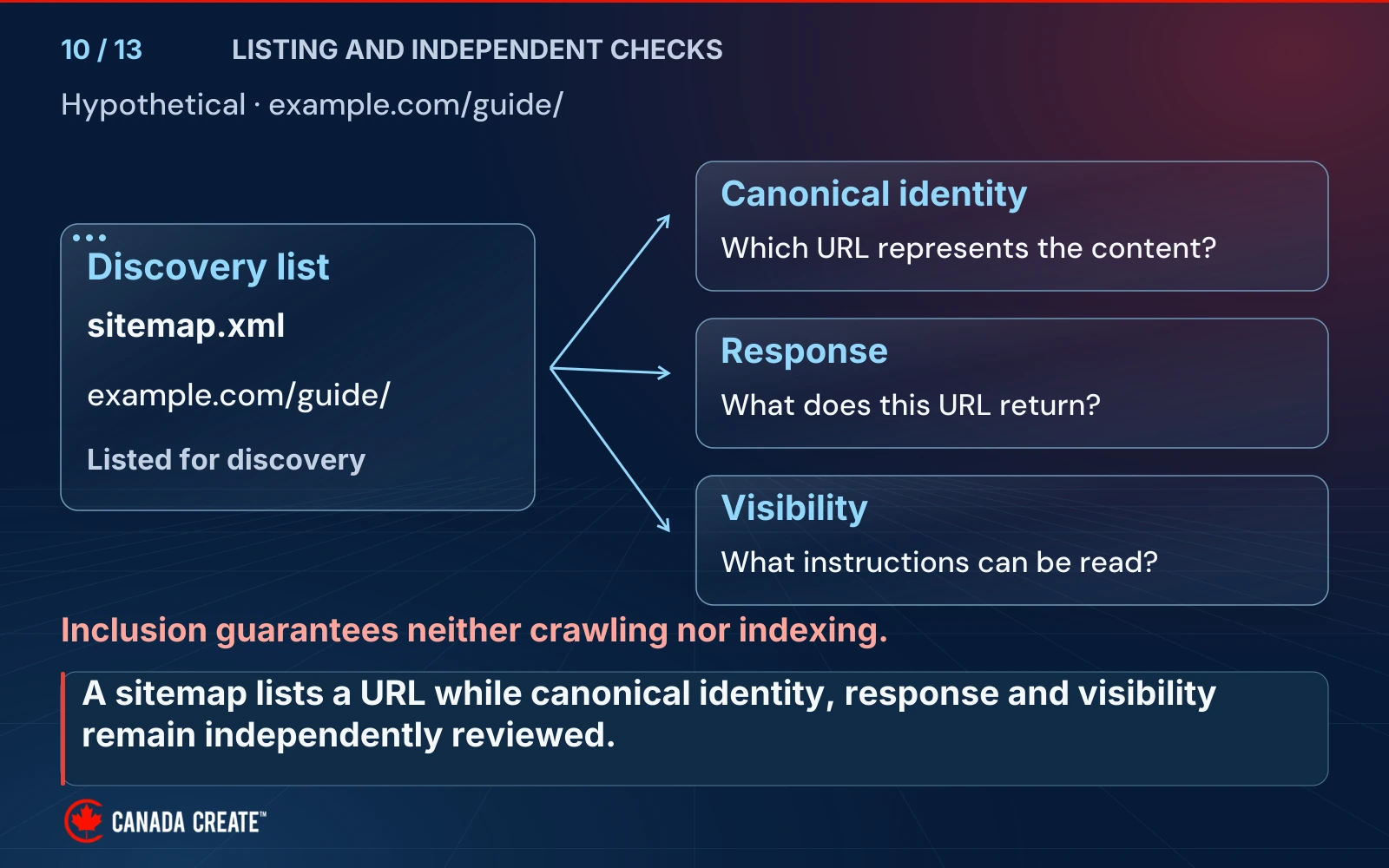

The left-hand Discovery list is a hypothetical sitemap.xml containing example.com/guide/. Separate arrows lead to three independent questions: Canonical identity asks which URL represents the content; Response asks what this URL returns; Visibility asks what instructions can be read. Mobile places the listed URL above those three questions. A red note states that inclusion guarantees neither crawling nor indexing. None of the independent checks is marked approved, resolved or successful. The diagram therefore treats the sitemap as discovery context without turning its URL listing into an indexing or canonical-status claim.

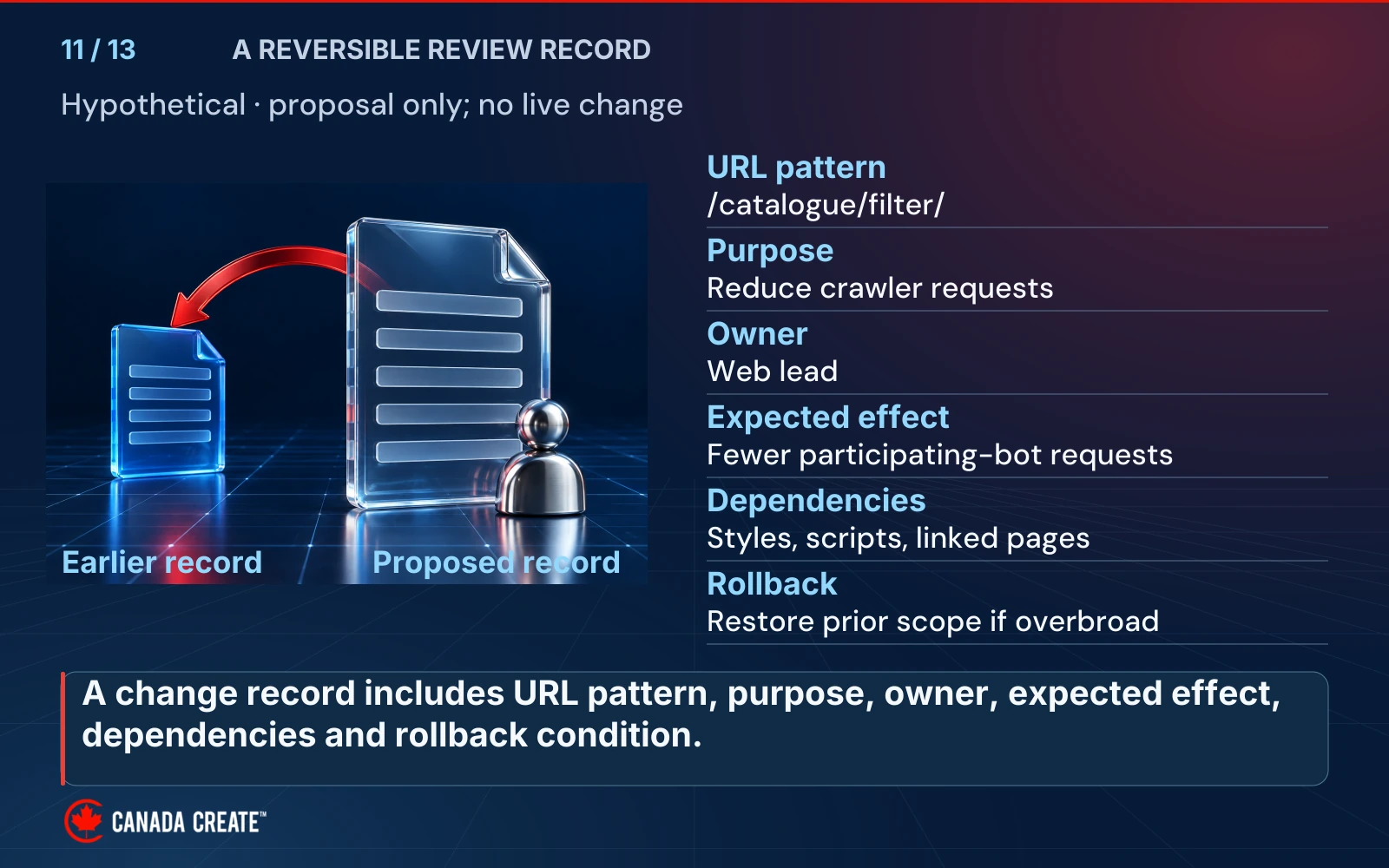

A glass-document diagram shows a Proposed record, an owner token and a red return arrow pointing back to an Earlier record. The hypothetical review fields name /catalogue/filter/ as the URL pattern, reducing crawler requests as the purpose, and Web lead as the owner. The expected effect is fewer participating-bot requests; it is a proposal, not an observed result. Dependencies include styles, scripts and linked pages. Rollback is to restore the prior scope if the proposed boundary is overbroad. The mobile form reflows each field label over its value.

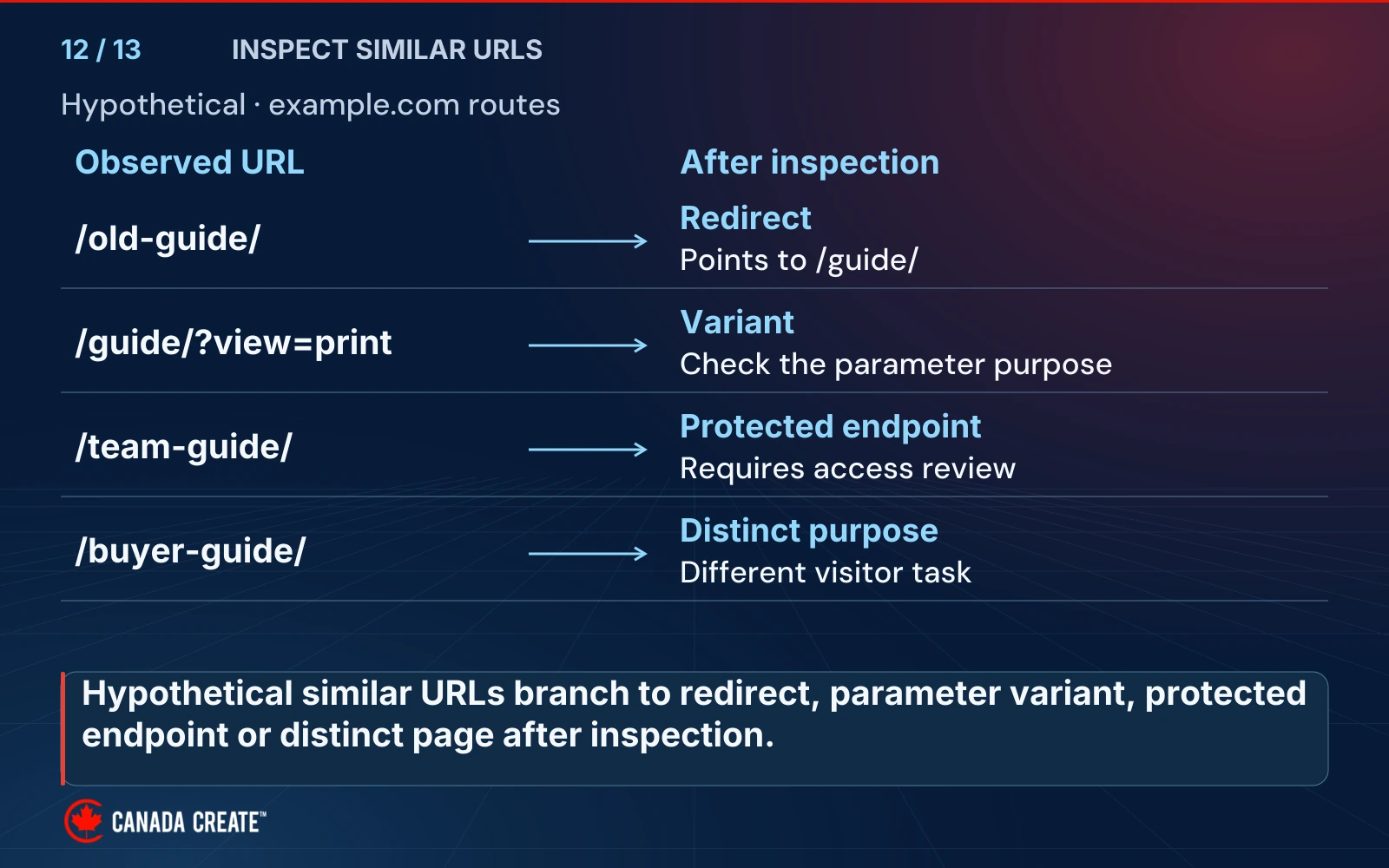

Four hypothetical example.com routes are paired with observations after inspection. /old-guide/ is labelled Redirect and points to /guide/. /guide/?view=print is a Variant whose parameter purpose should be checked. /team-guide/ is a Protected endpoint requiring access review. /buyer-guide/ has a Distinct purpose and serves a different visitor task. Arrows connect each route to its own interpretation, and the mobile layout preserves the four separate examples. No route is marked safe to block simply because its name resembles another. These examples are fictional and do not disclose sensitive or live website paths.

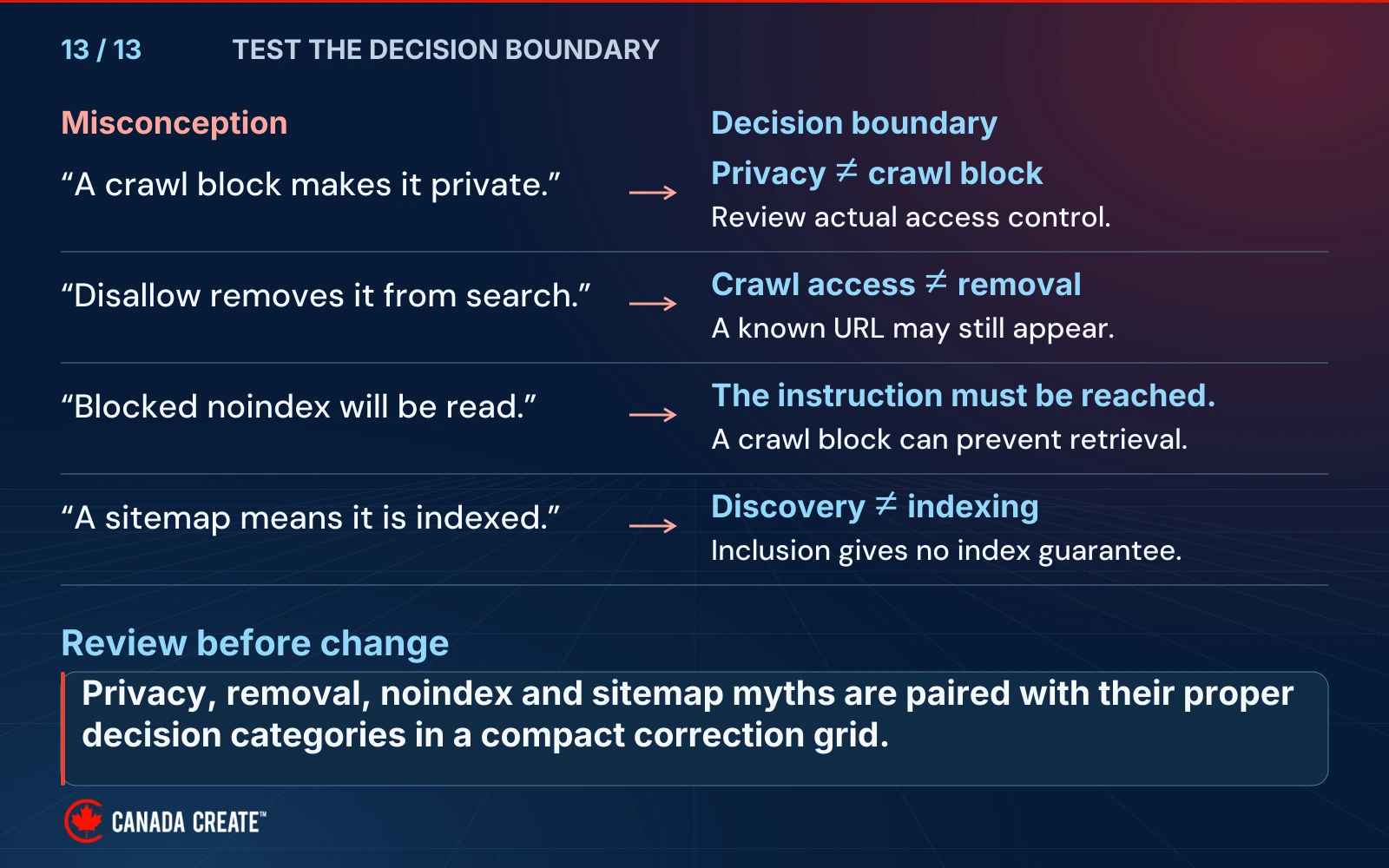

Four misconceptions are paired with precise boundaries. “A crawl block makes it private” is corrected by Privacy not equal to crawl block and a review of actual access control. “Disallow removes it from search” is corrected by Crawl access not equal to removal because a known URL may still appear. “Blocked noindex will be read” is corrected by the requirement to reach the instruction, since a crawl block can prevent retrieval. “A sitemap means it is indexed” is corrected by Discovery not equal to indexing and no index guarantee from inclusion. The final line is Review before change. The figure does not prescribe a live rule or promise ranking, removal or security.
